Descripción
-
NVR5416/5432/5464-4KS2
16/32/64 Channel 1.5U 4HDDs 4K & H.265 Pro Network Video Recorder
> 16/32/64-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
> Max 320 Mbps incoming bandwidth
> Up to 24MP resolution for live view and playback
> 1-channel fisheye dewarping (AI by NVR)
> AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
System
Main Processor
Industrial embedded micro-processor
Operating System
Embedded Linux
Operation Interface
Web; local GUI
Perimeter Protection by Camera
Performance
16/20/20 channels
AI Search
Search for pictures by channel, time and event type
Face Recognition by Camera
Performance
14 channels
Face Attributes
6 attributes: Gender; age; glasses; expression; mouth mask; beard
AI Search
Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance
16/32/64 channels
AI Search
Search by target classification (human, vehicle)
Video Metadata by Camera
Performance
16 channels
Human Body
Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella
Vehicle
Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region
Non-motor Vehicle
Type; color; number of passengers; helmet
AI Search
Supports searching for target video by metadata
ANPR by Camera
Performance
4 channels
Stereo Analysis by Camera
Performance
16 channels
AI Search
Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)
Video
Access Channel
16/32/64
Network Bandwidth
320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
Decoding Capability
16-channel@1080P (30 fps)
Video Output
HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720
HDMI2/VGA2: 1920 × 1080
VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous outputMulti-screen Display
1st Screen: 16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36
64-channel: 1/4/8/9/16/25/36/642nd screen: 1/4/8/9/16
Third Party Camera Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more
Compression
Video
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG
Audio
PCM; G.711A; G.711U; G.726
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P
Mobile Phone Access
Android; iOS
Interoperability
ONVIF (profile T/S/G); CGI; SDK
Browser
Chrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback
1/4/9/16
Record Mode
Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)
Storage Method
Local HDD and network
Backup
USB device
Playback Function
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/offStorage
Disk Group
Yes
Alarm
General Alarm
Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm
Anomaly Alarm
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
Intelligent Alarm
Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;
heat map
Alarm Linkage
Record; snapshot; IPC external alarm output; buzzer; log; preset; email

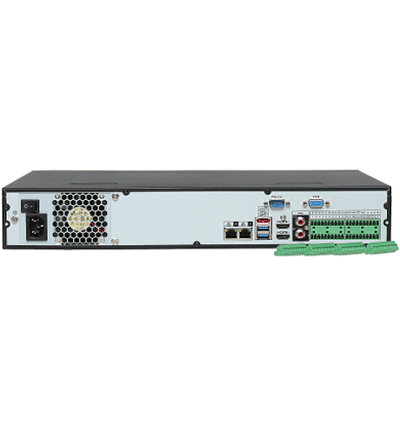

External Port
Audio Input
1 channel, RCA connector
Audio Output
2 channels, RCA connector, which supports voice intercom output
HDD
4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Alarm Input
16 channels
Alarm Output
6 channels
eSATA
1 eSATA
RS-232
1 channel, used to debug and pass through serial data
RS-485
1 channel, used to control PTZ, and it supports multiple protocols
USB
1 front USB 2.0 port, 2 rear USB 3.0 ports
HDMI
2
VGA
2
Network
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
General Parameter
Power Supply
Single, 100V–240V AC, 50 Hz–60 Hz
Power Consumption
< 16.7W (without HDD)
Net Weight
4.3 kg (9.5 lb) (without HDD)
Gross Weight
7 kg (15.4 lb) (without HDD)

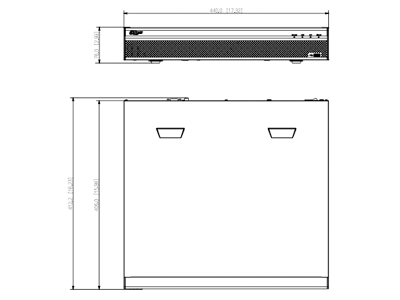

Product Dimensions
440 mm × 412.2 mm × 76.0 mm (17.3" × 16.2" × 3.0")
Package Dimensions
522 mm × 492 mm × 200 mm (20.6" × 19.4" × 7.9")
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Storage Temperature
0°C to +40°C (+32°F to +104°F)
Operating Humidity
10%–93% (RH)
Storage Humidity
30%–85% (RH)
Operating Altitude
3,000 m (9,843 ft)
Certifications
CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1
