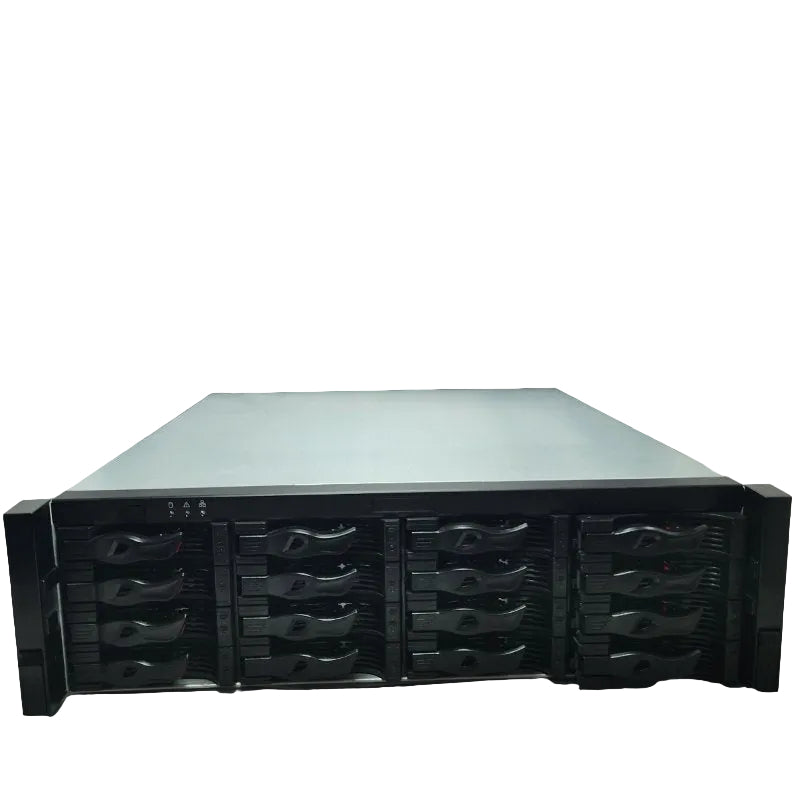

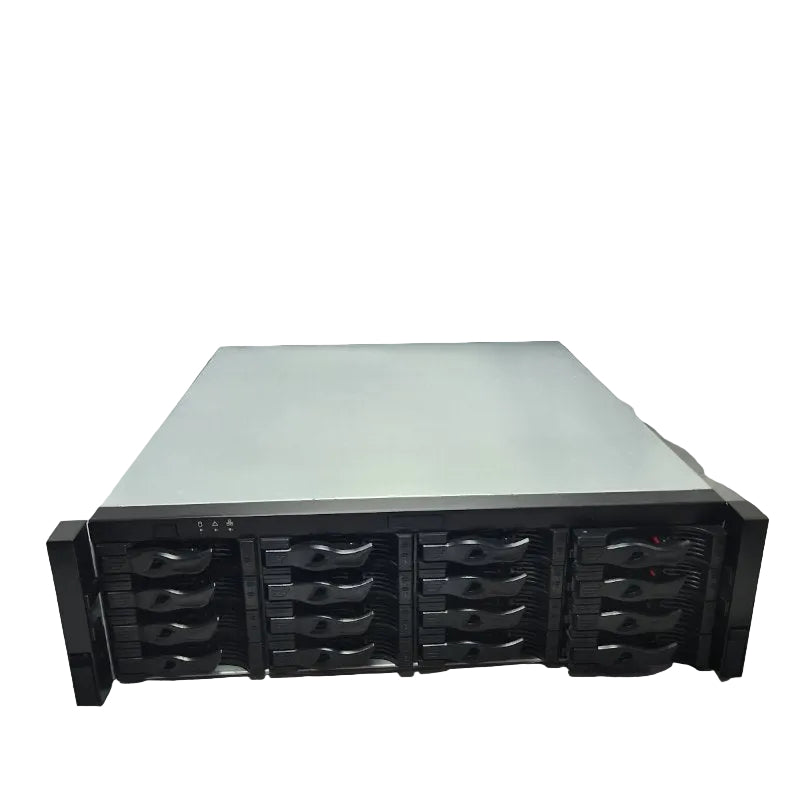

Almacenamiento De Video Integrado Dahua Evs5016S

System

Main Processor

64-bit high-performance Intel processor

Controller

Single controller

Memory

4GB by default

Operating System

Embedded LINUX

User Interface

Web

Working Mode

Video Stream Mode

320-channel (640Mbps) incoming and recording, 160-channel (320Mbps) forwarding, 32-channel
(64Mbps) playback

IP SAN Mode

Storage bandwith ≤2.7Gbps
Write-through: 320Mbps; Write-back: 480Mbps

Storage

HDD Amount

16 HDDs, Up to 10TB capacity for each HDD
SATA HDD composite connection

miniSAS

1 miniSAS ports, for storage extension

HDD Installation

Additional HDD bracket,

HDD hot-swap, HDD online replacement

HDD Mode

Single, RAID 0/1/5/6/10/50/60(Enterprise-level HDDs are recommended), JBOD, hotspare

Storage Management

HDD Manager

Non-working HDD hibernation to guarantee sound ventilation, reduce power consumption and enhance HDD life span
HDD bad track mapping to enhance HDD life span

RAID Rebuild

Dynamically adjust RAID rebuild speed to guarantee system load balance

Logic Volume Manager

Support iSCSI volume management, NAS(SMB/NFS/FTP) volume management

Snapshot

Support snapshot function, create user volume to back data.

Extract Frame

Support extracting P frame function. Customizied extracting period and frame rate setup.

Cluster Service

N+M cluster service

ANR

After diconnection, system can download the record file from the SD card on the network camera to maintain the full record file.

Shortcut RAID Creation

Click one button to create RAID conveniectly.

Playback and Backup

Search Mode

Time/Date, Channel, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Fast play, Slow play, Full screen, Backup selection, Digital zoom

Backup Mode

USB Device/Network/eSATA Device

Third-party Support

Third-party Support

Dahua, AEBell, Arecont, AXIS, Dynacolor, HIKVISION, LG, Panasonic, PSIA, Samsung, Sony, Vivotec, and more

Recording

IP Camera Input

320 Channel

Record Rate

640 Mbps

Record Mode

Manual, Schedule(Regular, Continous), Motion Detection, Alarm

Record Interval

1 ~ 120 min(default 60 min)
Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec.
I frame storage by period.

Auxiliary Interface

USB

1 USB 3.0

Multiplex Interface

1 USB 2.0 & eSATA multiplex interface

RS232

1 Port, for PC communication and Keyboard

Network

Interface

2 data RJ-45 ports (10/100/1000Mbps)

Network Mode

Multi-address, Fault-tolerance, Load balance, Link aggregation

Network Function

HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Electrical

Power Supply

AC100V ~ 240V, 47 ~ 63 Hz

Power Consumption

< 200W (With HDD)

Environmental

Working Conditions

0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 5% ~ 90% RH

Working Altitude

-60m ~ 3000m

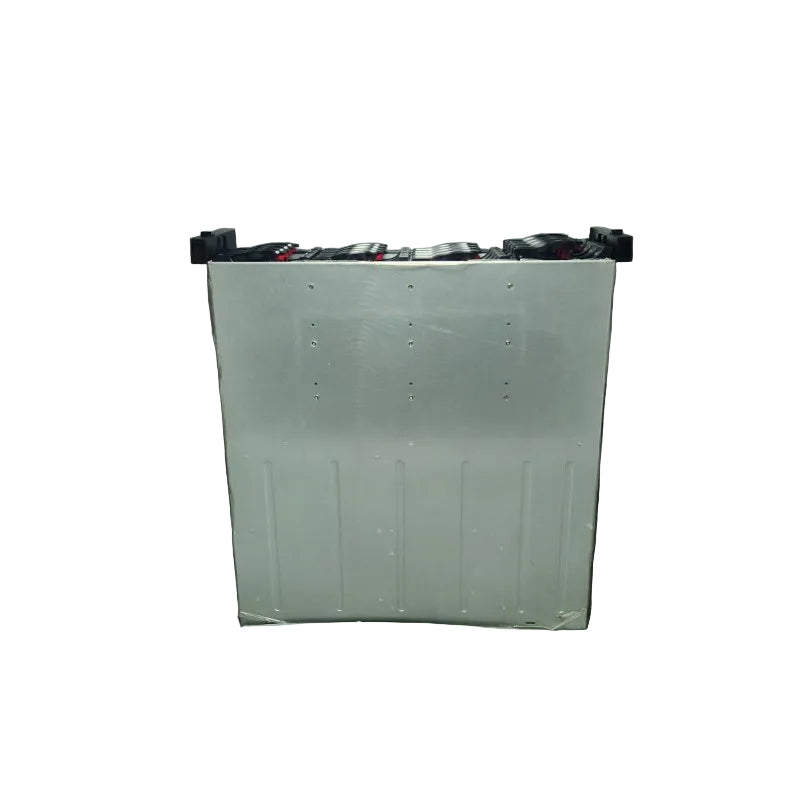

Construction

Chassis

1.2mm extra-thickness hot-dip galvanized steel.
High accuracy aluminum alloy slider.
Self-developed patent removable HDD bracket.

Dimensions(W x D x H)

3U, 484.6mm x 473.6mm x 133.2mm ;

(19.1" x 18.6" x 5.2")

Net Weight

10kg (22.0 lb) (without HDD)

Gross Weight

15kg (33.1 lb)

Installation

Standard 19-inch rack installation

Certifications

CE

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2009

UL

UL 60950-1 and CAN/CSA C22.2 No.60950-1
